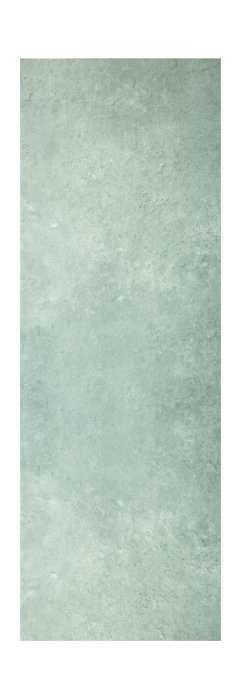

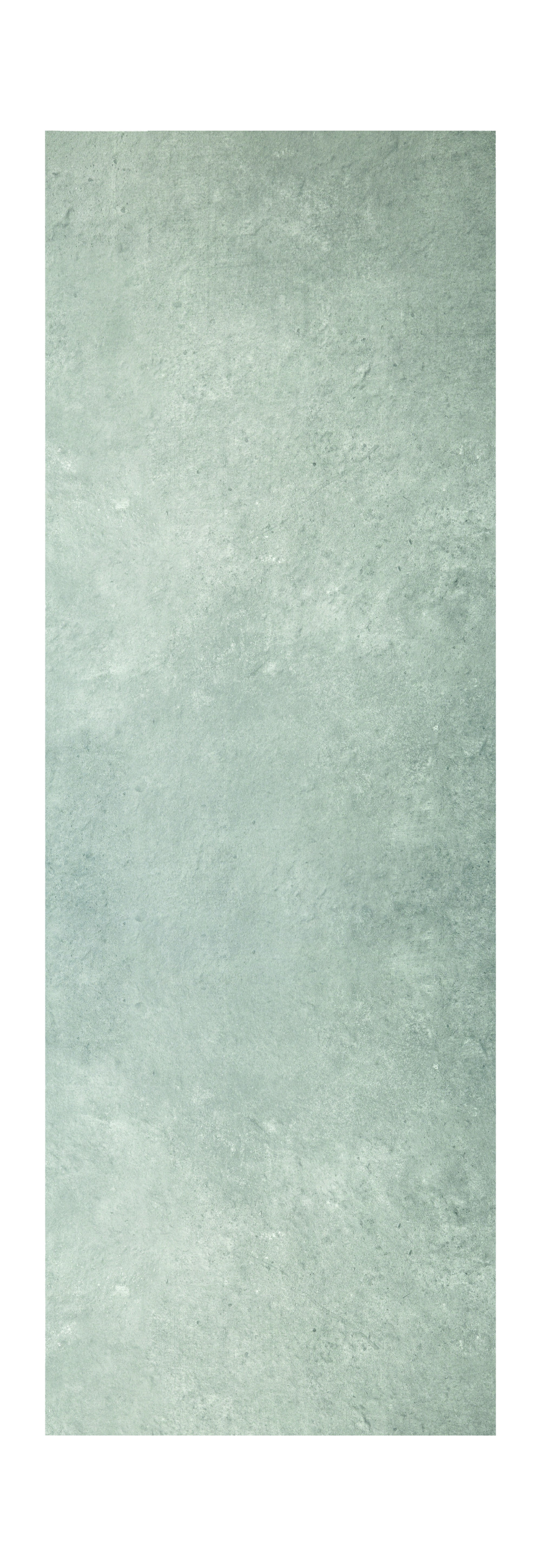

Give your bathroom or kitchen a stylish look with the Mural Revela wall panel. This high‑quality wall panel from Gerflor impresses with its waterproof surface – ideal for modern and long‑lasting wall coverings in wet rooms. The robust PVC and composite material with a thickness of only 0.5 cm allows for easy tongue‑and‑groove installation and gives your bathroom or kitchen an attractive appearance.

Your Benefits

• A quick, clean and low‑noise solution for renovating bathrooms – even on existing tiles

• Tongue‑and‑groove connection, no grouting required

• Suitable for renovation and new construction

• Easy and fast installation

• 100% waterproof

Package contents: 1 pack = 2 panels = 4.68 m²

Installation: Adhesive bonding, locking system

Fire rating: D‑s3, d0

Recyclable: 100%

Recycled content: 30%

In shower areas, the tongue‑and‑groove joints must be additionally bonded with MS polymer adhesive to ensure the waterproof surface specified by the manufacturer. Please follow the installation instructions (see downloads).

Mural Revela is not suitable for floor installation – for floors, our bathroom solution Fliesana and Fugofill remains the best choice.

Mural Revela FAQs

1. Can it be installed on the ceiling?

No, installation on the ceiling is not possible. There is a risk of the product falling and causing injury or damage. Additional fire protection regulations may also apply.

2. Which silicone is approved?

Silicone is not suitable for PVC. Polymer adhesives provide better adhesion. Transparent polymer is recommended.

3. Is waterproofing behind Mural Revela necessary?

Additional waterproofing is only required in wet areas if the substrate is not waterproof. If in doubt, waterproofing can be applied, even on top of tiles (polymer adhesive still adheres). Recommended: any transparent polymer. Good results were achieved with Bostik MSP 106 or Rubson FT 101.

4. What waterproofing regulations apply in Germany?

The installer must check the substrate for waterproofness, especially in wet rooms. If the substrate is not waterproof, it must be sealed with a suitable product.

5. How should the old substrate be prepared?

This must be checked individually. If necessary, apply waterproof primer with a roller. Missing tiles can be leveled with Wedi boards.

6. Does the system have DIN 18534 certification?

The product itself is not certified. The substrate must be waterproof.

7. Which polymer adhesive is recommended?

A “soft” MS polymer is recommended. Hard polymers dry too quickly and are harder to work with.

8. How is the adhesive applied?

By cartridge. A notched trowel is not required (unlike some competitors).

9. Where can the product be used with fire class D‑s3, d0?

This depends on regional regulations and must be checked individually.

10. Is it approved for sports halls or swimming pools?

No. Showers may be possible but must be checked individually.

11. Can different formats be combined?

Yes – observe installation direction.

12. Can XL (260×90 cm) and XXL (260×120 cm) be combined?

Yes.

13. What flatness must the substrate have?

Flatness: < 5 mm with a 2 m straightedge and < 3 mm with a 20 cm straightedge.

14. Recommended floor coverings?

Currently no specific recommendations. Options will be presented in the next Creation collection.

15. What about mold or condensation behind the panels?

No cases known. Structural building issues cannot be attributed to the wall panel. The same issue could occur with ceramic tiles.

16. Installation time?

Approx. 3 hours per 10 m² (20 minutes per m²). Ceramic tiles: approx. 10 hours per 10 m².

17. Processing cost?

Tiles incl. adhesive, profiles: €60–80 per m² XL panels incl. adhesive, profiles: €90–105 per m² (Without labor costs)

18. How to repair a hole?

Cut a matching piece from a new panel and cover the hole. In wet areas, replacing a full panel is recommended.

19. What about scratches?

Use Dr. Schutz Scratch Fix or a matching touch‑up pen.

20. Use in the kitchen?

Yes. Behind the stove, an additional splash guard (glass, metal, etc.) is required.

21. Cleaning instructions?

A list will be provided. Standard cleaners without or with low chlorine content are suitable. Neutral and vinegar‑based cleaners are recommended.

22. Chlorine cleaners?

Still being tested.

23. How to remove lime/soap residue before installation?

Water, vinegar cleaner, alcohol if needed.

24. Steam cleaner?

Not recommended due to heat and pressure.

25. Suitable for sauna/steam bath?

No. Showers may be possible.

26. Color batch differences?

No known issues, but cannot be fully excluded.
